Model(H) | D(mm) | M | D2(mm) | H(mm) | Pull Force(Kg) |
NdFeB-H-16 | 16 | M3 | 6.5 | 5 | 7 |
NdFeB-H-20 | 20 | M4 | 8 | 7 | 10 |
NdFeB-H-25 | 25 | M5 | 9 | 8 | 20 |
NdFeB-H-32 | 32 | M5 | 9 | 8 | 35 |
NdFeB-H-36 | 36 | M6 | 11 | 8 | 42 |
NdFeB-H-42 | 42 | M6 | 11 | 9 | 68 |
NdFeB-H-48 | 48 | M8 | 15 | 11.5 | 75 |
NdFeB-H-60 | 60 | M8 | 15 | 15 | 112 |
NdFeB-H-75 | 75 | M10 | 18 | 18 | 164 |

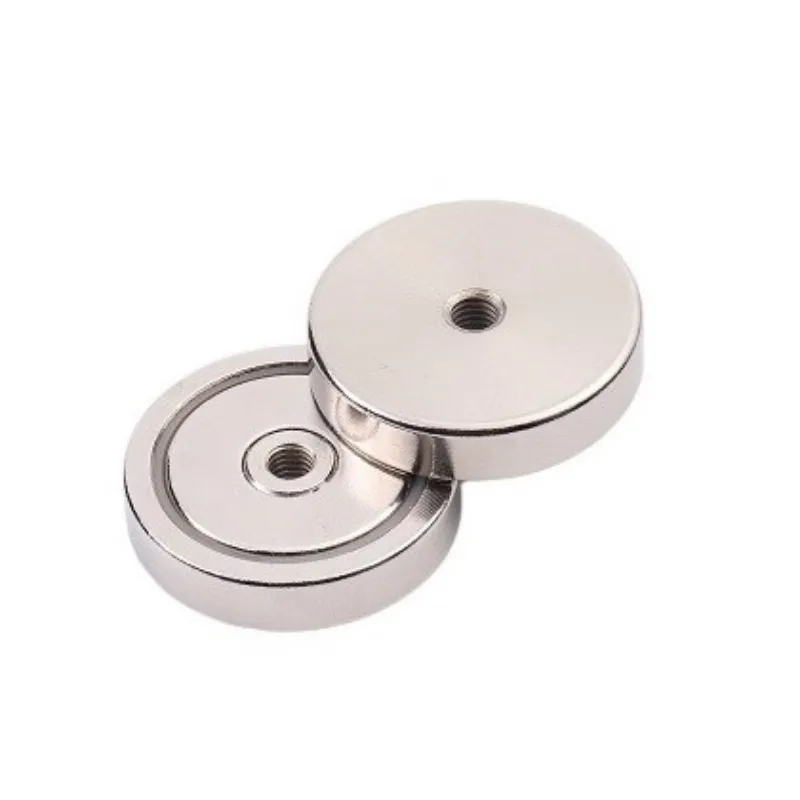

Key Features
Internal Female Thread Design Standard tapped hole for direct fastening with screws, bolts, or threaded rods; easy installation, adjustment, and disassembly.
Extremely Strong Holding Force Steel cup housing concentrates magnetic flux, greatly improving pull force and protecting the magnet from impact and breakage.
Durable & Corrosion Resistant Multi-layer coatings including Ni-Cu-Ni, zinc, black epoxy, and painted finishes for long service life in harsh environments.
High Stability & Vibration Resistance Firm connection structure ensures stable performance under vibration and mechanical stress.
Flexible Material Selection Neodymium (NdFeB) for ultra-high strength; Ferrite (Ceramic) for cost efficiency and good temperature resistance.
Precision Manufacturing Strict thread tolerance, consistent dimensions, and 100% tested magnetic force.
Technical Information
· Magnet Material: Neodymium (N35–N52) / Ferrite Ceramic
· Housing: Steel cup
· Thread Type: Internal (female) thread
· Common Sizes: M3, M4, M5, M6, M8, M10, M12 (custom available)
· Outer Diameter: Ø16 mm – Ø100 mm
· Pull Force: 7 kg – 200 kg
· Coatings: NiCuNi, Zinc, Epoxy, Black Paint
· Max Operating Temperature: 80°C (NdFeB); 200°C (Ferrite)
· Magnetization Direction: Axial
